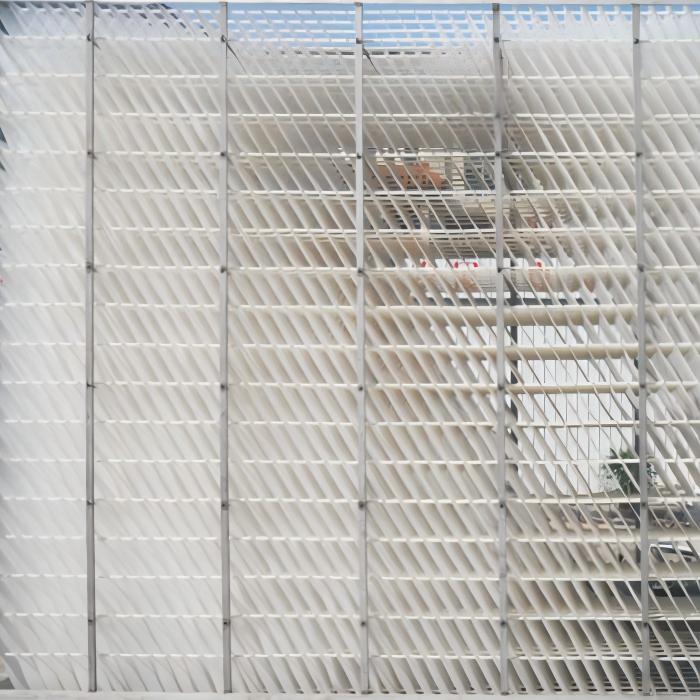

Side-Flow Lamella Plate Plate Packings
This side‑flow lamella plate packing is a high‑efficiency sedimentation device developed by our company in collaboration with domestic experts, incorporating advanced international technology. It has been successfully applied at the Changchun Sino‑Japanese Friendship Water Plant.
The device operates on the shallow‑depth sedimentation principle, which shortens the particle settling distance and improves sedimentation efficiency. Multiple layers of suspended or push‑frame plates are employed to increase the effective settling area.
Technical Specifications
Standard single plate dimensions: Length: 1000 mm; Width: 1000 mm; Thickness: 0.8–1.5 mm
Plate pack spacing: 60–120 mm
Inclination angle: 60°
Customized fabrication is available upon customer design requirements.
Product Materials
PP, PVC, ABS
Advantages

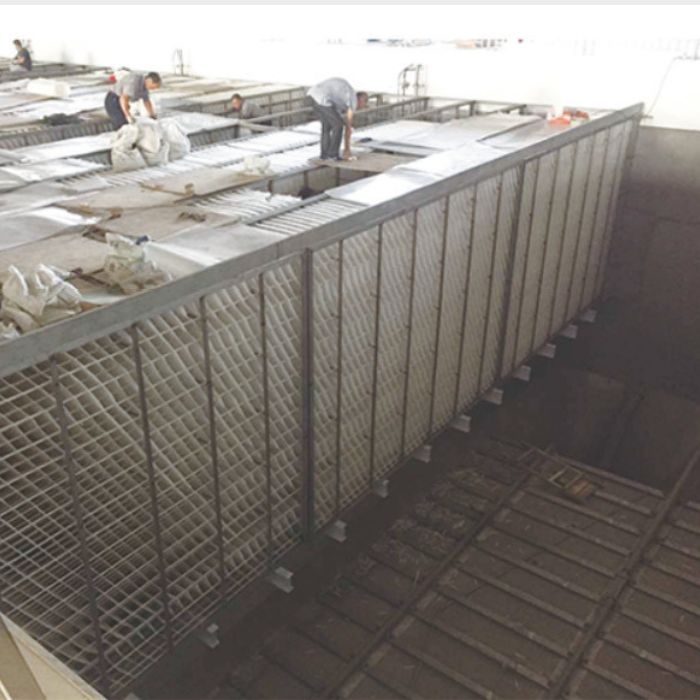

Multi‑layer plates are stacked and fixed in a suspended or frame‑type arrangement, increasing the effective settling area with high volumetric utilization and a small footprint.
Thermoformed plates ensure precise dimensions and smooth surfaces, providing excellent sludge discharge performance.
High sedimentation efficiency, superior sludge discharge performance, and compact land use.
