Parts & Equipment For Flocculation And Sedimentation
-

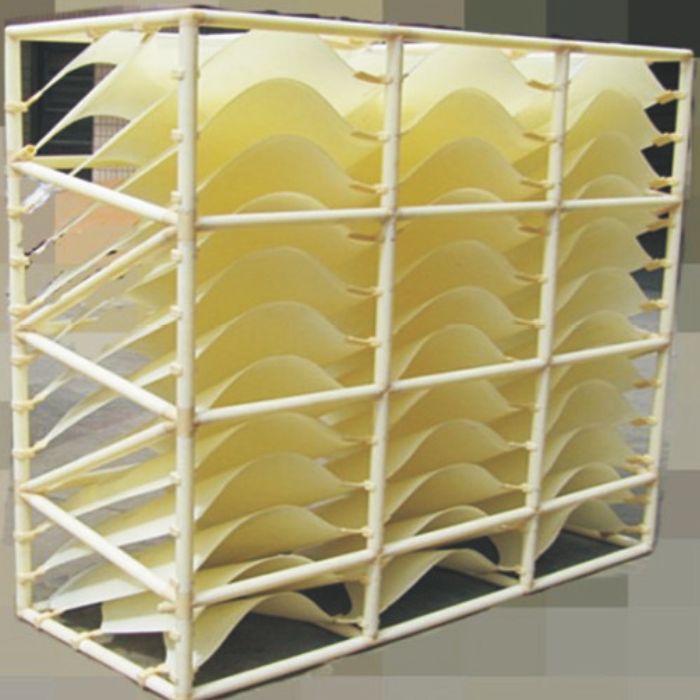

ABS Side‑Flow Corrugated Lamella Plate
The ABS Side‑Flow Corrugated Lamella Plate is a high‑efficiency sedimentation device developed by our company based on the opposed‑flow corrugated lamella settler technology originally invented by Dutch International Molle, combined with Japanese side‑flow lamella technology, and developed under the guidance of domestic experts
Email Details -

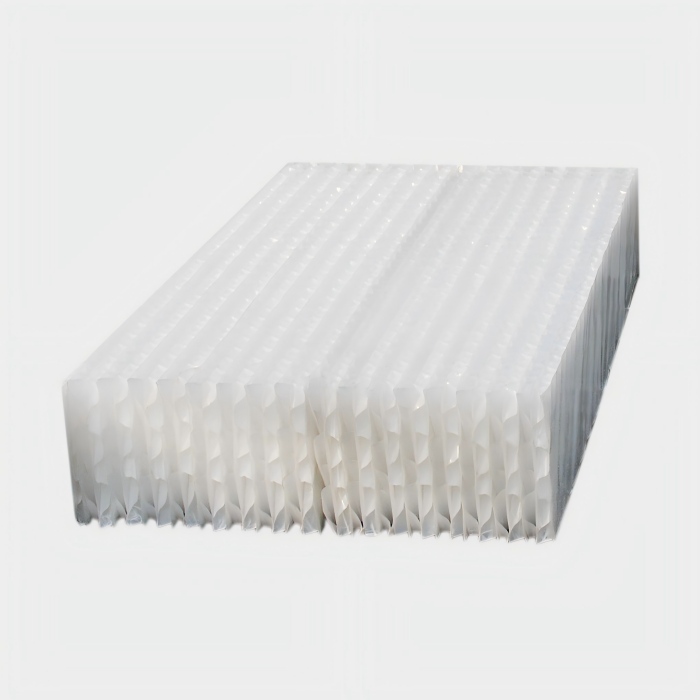

PP Staggered Inclined Tube Packings
In the wastewater treatment processes like UNITANK which allows biological aeration and sludge settling within the same physical space, conventional aligned inclined tube settlers featuring a single-directional inclination, limits their applications in such a complex hydraulic condition. The treated wastewater at the sedimentation phase not only encounters forward cross flows but also countercurrent and concurrent flows. As a result, conventional aligned inclined tube packings are unable to achieve the intended shallow-distance sedimentation. To address this issue, ZCEN staggered inclined tube packings offer a more advanced and satisfactory solution.
Email Details -

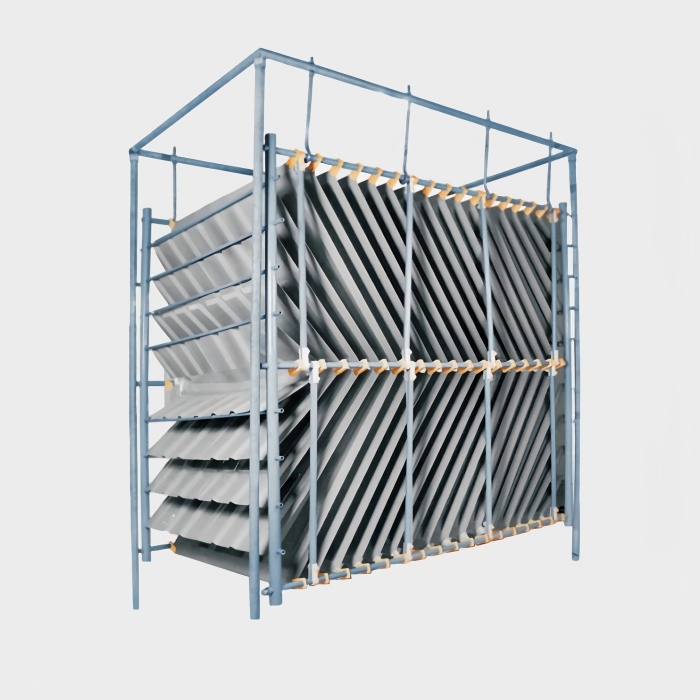

Side-Flow Lamella Plate Plate Packings
This side‑flow lamella plate packing is a high‑efficiency sedimentation device developed by our company in collaboration with domestic experts, incorporating advanced international technology. It has been successfully applied at the Changchun Sino‑Japanese Friendship Water Plant.
Email Details
The device operates on the shallow‑depth sedimentation principle, which shortens the particle settling distance and improves sedimentation efficiency. Multiple layers of suspended or push‑frame plates are employed to increase the effective settling area. -

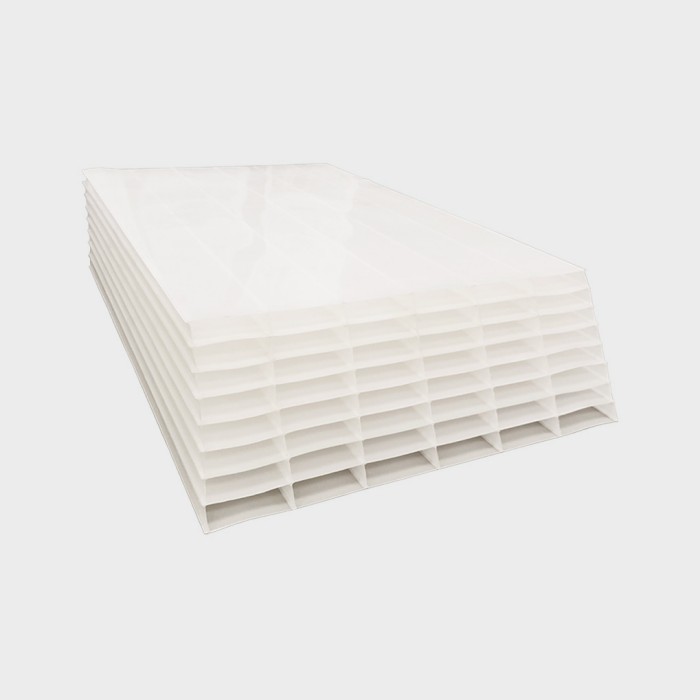

Small‑Spacing Lamella Plate Packings
● Plate spacing: 25 mm – 100 mm (customizable upon request)
Email Details
● Sheet thickness: 1.0 – 2.0 mm (customizable upon request)
● Block dimensions: 1000 mm × 1000 mm × 1000 mm (customizable upon request)
● Standard inclination angle: 60°
● Adjustable inclination angle: 30° – 70° -

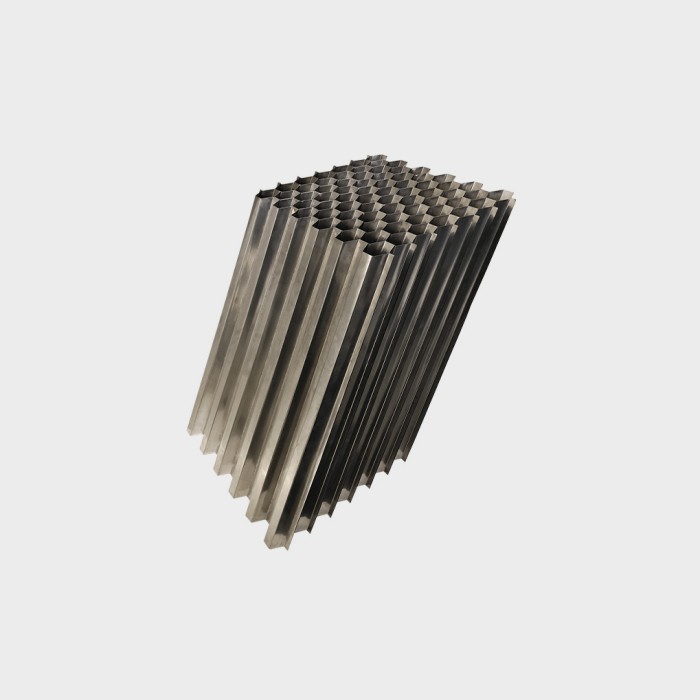

Inclined Tube Packings
Inclined tube packings are a widely used high‑efficiency sedimentation device. They offer a high Froude number and a low Reynolds number, ensuring excellent laminar flow conditions. SS settling is not disturbed by turbulent sources, and the treatment capacity is several times higher than that of horizontal sedimentation, accelerated clarification, and pulsed sedimentation processes. Our company has introduced specialized equipment from abroad, featuring advanced processing technology. The product has a unit cross‑section of 1 m², with high strength, precise geometric dimensions, and smooth inner and outer walls for the sludge discharge channels, providing excellent aging resistance.
Email Details
